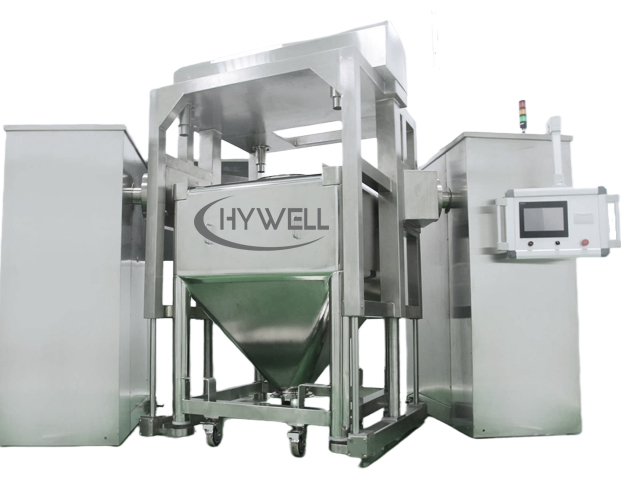

IBC Bin Powder Mixer

For the IBC bin powder mixer (Bin blender), the possibility to move the bin in which the mix is being done is also opening interesting possibilities to reduce handling, conveying, and dust emissions. Those IBC bin mixer designs are very often used in pharmaceuticals or food manufacturing.
The IBC bin powder mixer indeed constitutes a very simple solution, cheap, reliable, and generally offers good accessibility for cleaning between 2 batches if needed. The homogeneity achieved is very variable but can be more than satisfactory for some applications, especially when a premix is produced that will be used in the main powder mixer. In addition, it must be noted that the product is not in contact with the bearing, or bearing seal, removing a source of contamination (stagnant product released from time to time, lubricant, or wearing of mechanical parts).
For the IBC bin powder mixers, the mixing time is typically 5-15 min. The IBC powder mixer is quite long compared to other power mixers and mainly due to the fact that no agitator is involved to speed up the movement of particles.

  • FZH

  • HYWELL

  • 847820090

  • SUS304/SUS316L/Titanium

  • Food/Pharmaceutical/Chemical

Availability:
Quantity:

IBC Bin Powder Mixer Introduction

The Hywell FZH IBC bin powder mixer is a double-column bin blender for batch mixing dry powders and granules in pharmaceutical, food, and chemical production. Its removable intermediate bulk container (IBC) serves as both the mixing vessel and the transfer container. Operators can load the material, blend it, and move the same bin to a compatible discharge station, reducing the need to transfer powder between containers.

The FZH specification table lists nominal bin volumes of 1,000, 1,500, and 2,000 L. A 3,000 L configuration is also available. Actual batch weight depends on the working volume, the material’s loose bulk density, and the maximum product load of the selected model.

How the IBC Bin Powder Mixer Works

The double-column lifting system raises the bin into its blending position. The bin is mounted at a 30° angle to the axis of rotation. As the motor rotates the entire vessel, gravity causes the powder or granules to tumble and redistribute inside the bin. The loading lid and discharge valve remain closed during blending to help contain airborne dust.

PLC Control and Automatic Bin Positioning

Operators set the blending time and rotation speed through the PLC touchscreen. On configurations with automatic positioning, the controller stops the bin at the designated unloading position after the cycle. The bin can then be lowered and removed for transfer. Depending on the configuration, the FZH can include safety interlocks, infrared safety sensors, a discharge valve safeguard, and batch record printing.

Enclosed Feeding, Discharge, and Bin Cleaning

For bagged ingredients, Hywell can combine a dust-free feeding station with a vacuum feeder to convey powder into the IBC through an enclosed transfer path. After blending, the same bin can dock at a compatible discharge station, tablet press, or packaging feed system. These stations can be integrated into a complete powder mixing line.

The removable bin can be taken to a separate area for cleaning and inspection between batches. For compatible bins, Hywell offers a dedicated IBC bin cleaning and drying system.


ibc bin powder blender

IBC Bin Powder Blenders

IBC BIN MIXER

IBC Bin Blender

IBC Bin Powder Blender Video


IBC Blender for Different Volume Bin (Interchange drum mixer)


FZH IBC Bin Blender Specifications

Model

Nominal   bin volume (L)

Max load Factor (%)

Listed   working volume (L)

Listed   maximum material load (kg)

Lifting power (kW)

Mixing   power (Kw)

Minimum   Overall Height   (mm)

FZH-1000

1000L

80

800

400

3

5.5

3338

FZH-1500

1500

80

1200

600

3

7.5

3625

FZH-2000

2000

80

1600

800

3

7.5

3650

FZH-3000

3000

80

2400

1200

4

11

4200

1.  Compare the nominal bin volume, working volume and maximum product load for the listed FZH models. For a larger bin, ask Hywell about project-specific configurations up to 3,000 L nominal volume.

2.  Specifications are for reference. Confirm the permitted working volume, product load, gross loaded bin weight and installation clearances for the quoted configuration.

3. Multiply the planned fill volume in liters by the loose bulk density in kg/L. For the FZH-2000, a 1,600 L working volume holds an estimated 560 kg at 0.35 kg/L or 800 kg at 0.50 kg/L. Both the approved fill volume and the model’s load limits apply.


How a Double-Column IBC Bin Blender Works

The two columns support a lifting and rotating assembly. The inclined bin rotates as a single vessel, and gravity tumbles the material inside the bin without an internal agitator. The loading lid and bottom valve remain closed during blending.

1. Load and dock

Fill the IBC at the loading station, close the lid and dock the bin in the blender frame.

2. Clamp, lift and blend

Secure the bin, raise it to the blending position and rotate it at the selected speed for the specified time.

3. Position and lower

With automatic positioning, the control system stops the bin at its designated unloading orientation before the bin is lowered.

4. Transfer and discharge

Remove the bin and dock it at a compatible station or machine. Open the bottom valve to discharge the blend by gravity.


Bin, Control and Line Integration Options

Interchangeable IBCs

A configured frame can accept multiple approved bin sizes. Confirm mounting points, gross loaded bin weight and rotating clearance for every bin.

PLC and touchscreen

Specify cycle time and speed controls, automatic positioning, alarms and interlocks. Recipe storage and batch record printing can be specified for the project.

Product contact surfaces

Specify 304 or 316L stainless steel, the surface finish, seal material and discharge valve to suit the product and cleaning procedure.

Loading station

Choose a manual or enclosed loading arrangement. A bag dump station and a vacuum feeder can be integrated where the process calls for them.

Discharge and transfer

Match the bin valve and docking height to the discharge station, tablet press or packaging feed system. See Hywell’s complete powder mixing line.

Cleaning and changeover

Remove the bin for separate cleaning and inspection. A dedicated IBC bin washing and drying system can be quoted for compatible bins.


Dry Powder and Granule Blending

Typical pharmaceutical applications include blending excipients and granules before tablet compression or capsule filling. Food applications include seasonings, beverage premixes and other dry ingredient blends. The FZH can also be evaluated for compatible dry chemical powders and granules.

For cohesive powders, fragile granules or low-dose ingredients, use a product trial to confirm the fill level, speed, time and sampling plan. Where segregation is a concern, sample again after transfer or discharge.


FZH Double-Column or HTD Single-Column?

Consider the FZH for larger or heavier bins and the HTD single-column IBC bin blender for smaller-bin installations. At 1,000 L, compare gross loaded bin weight, bin interchange requirements, room clearance and docking layout before selecting a frame.


IBC Bin Powder Mixers Advantages

Hywell machinery FZH series IBC bin powder mixers had the following advantages over conventional solutions.

1. Excellent homogeneity of the IBC bin blender - all the product is collectively in flow all the time

2. Protecting particle integrity of the bin tumbler mixer - gravity enabling minimal, equal forces

3. Short mixing times of the bin mixers - due to lack of friction, no temperature rises or even topical hot spots

4. Quick and easy to clean the bin tumbler mixer - to provide good hygienic security

5. Low energy consumption of the bin tumbler powder mixers

6. Simple operation ensures safe and reliable production

7. It is provided with multiple safety interlocking mechanisms

8. IBC blending machine intelligent PLC control, and graphical HMI

9. It is provided with a built-in automatic fault self-diagnosis system

10. Flexible to transfer the materials with a trolley IBC bin

11. Mixing time and rotating speed are adjustable through the touch screen

12. IBC bin blender auto position, auto record printing, failure report, and alarm

13. Interchangeable IBC container suitable for various kinds of materials

14. Automatically finish all actions such as clamping, lifting, mixing, etc

15. The whole machine's novel design, compact structure, good appearance, and evenness of mixing reach 99%.

16. Highly polished inner and outer surfaces of the barrel, no dead comer, easy to discharge materials, easy to clear, and no cross-contamination. Confining the requirement of GMP.

17. Mirror-polished surface made with durable and high-quality stainless steel


Applications of the IBC Bin Mixer

So, where will use the IBC bin mixer? What are some of the things that a bin blending system can do?

To give you a better understanding, here are the most common industrial applications of bin blenders:

Blending different materials

The bin blender working principle ensures that it blends different materials to the utmost levels.

It performs blending roles in different industries including food, cosmetics, and pharmaceuticals among others.

Prevent contamination

It thoroughly mixes different content until you achieve a perfect mixture.

Normally, a blending process can result in the contamination of different materials.

The good news is that bin blending can prevent contamination. because different batches or different materials use separate blending containers.


Core Components of an IBC Bin Powder Blender

It is important to note that a bin blending system is not one homogeneous unit. Instead, it comprises different components. These components work in unison to achieve a particular goal. Let’s break down the main components of a bin powder blending system.

1. Blending Container of IBC Bin Powder Blender

This is the main component where the actual blending takes place. Mixing containers come in different designs and specifications. Each design and specification of the blending container should allow the maximum output of the blended material.

2. Materials charging and discharging ports of the IBC Bin Powder Blender

As the names suggest these two components provide entry and exit to the blending container. The two ports should have a sealing that prevents granules and fine powder from escaping from the container. The Bin blender sampler is an optional item.

3. Control Panel of Bin Powder Mixing Machine

All the bin mixing systems are modern and have the latest technology control systems. The control systems ensure that the bin blenders operate automatically without much human interference. Mixing time and rotating speed are adjustable through the touch screen to ensure the best mixing result; and the system auto-positioning, auto record printing, failure report, and alarm. Data is recordable and printable through a mini printer.

4. Clamping Bars of a Powder Bin Blender

The main role of the clamping bars is to support the bin blending system and ensure that it remains stable and working. Normally, an IBC bin blending system will experience some vibrations during operation.

Clamping bars ensure that the granule bin blender will remain stable despite the vibration.

Apart from the above components, modern container blenders have some of these features, including infrared safety devices and the safety interlocking mechanism.


IBC Bin Diffusive Mixers had the following options

1. Total volume of IBC Bin Diffusive Mixers

Total volume sizes range from 100 to 3000 liters.

 2. Materials of the IBC Bin Diffusive Mixer

Drums can be built in SUS304, SUS316L, Titanium, and Duplex stainless steel.

3.  Control system of the IBC Bin Diffusive Blender

The lifting powder mixer has more choices, such as push button or HMI+PLC.

4.   Feeding System of IBC Bin Diffusive Mixers

The feeding system for the powder blending machine can be by a manual or a vacuum feeder.

5.  Optional variable speed shell


Cleaning Method of the IBC Bin Powder Mixer

1. Stop operation

 Before cleaning, push the hopper of the bin mixer to the cleaning station and push it to a fixed position of the cleaning station so that the cleaning ball can enter the hopper.

2. Clean up the residue

Open the upper cover of the hopper and clean the residue in the mixer. Material adhering to the inner wall and mixing blades can be removed using tools such as scrapers or brushes.Install the cleaning device: manually move the cleaning ball of the lower cleaning station into the hopper.

3. Cleaning process

Turn on the switch of the CIP cleaning station for automatic cleaning of the interior of the bin.

4. Manual surface cleaning

Use a hand-held cleaning gun to spray dust on the surface of the hopper. You can use a damp cloth or detergent to wipe down the device case to keep it clean and tidy

6. Drying and assembly

 Place the cleaned parts in a well-ventilated area to dry. After making sure the parts are completely dry, assemble the parts according to the equipment manual or instructions for use. Make sure all parts are installed and tightened correctly.


IBC Bin Mixer Cleaning Process Video


Drying Method of the IBC Bin Powder Mixer

After cleaning, the square cone hopper (IBC Bin) should be left to dry naturally. Hywell Machinery also has an integrated cleaning and drying machine. This clean IBC bin device can automatically clean the hopper. After cleaning the hopper, it can switch to the process of automatic hot air drying inside the hopper. The specific usage process is as follows:

1. Move the hopper to the designated position of the cleaning station.

2. Open the upper cover of the IBC bin, lower the cleaning nozzle, and put it into the hopper.

3. Set the cleaning time and turn on the cleaning button. After the automatic cleaning time ends, the cleaning process ends.

4. Set the drying temperature and drying time, and turn on the drying button. After the automatic drying time ends, the drying process ends. If PLC control is adopted, all cleaning and drying settings can automatically complete the cleaning and hopper drying process.


IBC Bin Mixer Cleaning and Drying Process Video


IBC Mixer Powder Feeding Solutions

We offer a variety of solutions for different needs of feeding raw materials into IBC hoppers, mainly based on the packaging status of the raw materials. The specific solutions are as follows:

Open hopper transfer

If your raw materials are transported to the production line through an open hopper, we recommend the simplest vacuum extraction method to suck the materials directly into the mixer hopper. This solution is easy and fast to operate and is suitable for open packaged raw materials.

Bagged materials

If your raw materials are delivered to the factory in bagged materials, we recommend a dust-free feeding station. Through this equipment, not only dust is avoided when the materials are poured, but also threads and impurities in the bag opening process can be effectively screened to ensure the purity of the materials. After the materials pass through the dust-free feeding station, they are transported to the mixer hopper through the vacuum extraction system.

Platform loading

If your raw materials are stored on the second floor, we provide a matching loading platform and then push the hopper under the platform. This solution is suitable for the feeding needs of raw materials on the second floor, avoiding the inconvenience of manual handling, and efficiently processing through platform unloading. However, if it is only for loading, but the materials and the mixer are on the same floor, it is not recommended to use the platform loading method.

Please inform us based on the specific situation of your company's raw materials, and we will recommend the best feeding solution for you based on your needs.

2000L IBC Powder Bin Mixer Video


FZH IBC Bin Blender FAQ

Capacity and Model Selection

1.What sizes are available for the FZH double-column IBC bin blender?

The published FZH models have nominal bin volumes of 1,000, 1,500 and 2,000 L. Hywell can review larger project-specific configurations up to 3,000 L. Ask for the working volume, product load rating and layout drawing for the exact configuration.

2.What is the difference between nominal bin volume and working volume?

Nominal volume is the total internal bin volume. Working volume is the amount of space allocated for material during blending. The listed FZH-1500 has a 1,500 L nominal bin and a 1,200 L working volume.

3.How many kilograms can a 1,500 L IBC bin blender mix per batch?

At 1,200 L working volume, the FZH-1500 holds about 600 kg at 0.50 kg/L or 420 kg at 0.35 kg/L. The published maximum product load is 600 kg. Confirm your loose bulk density and the approved fill range before selecting the machine.

4. Can the FZH-2000 blend 1,000 kg per batch?

The published FZH-2000 has an 800 kg maximum product load. For a 1,000 kg target, provide the loose bulk density and empty bin weight so Hywell can evaluate a suitable configuration and its rated load.

5. What fill ratio should I use for an IBC bin blender?

The working volumes listed for the three FZH models correspond to 80% of nominal bin volume. The operating fill ratio should leave room for tumbling and be confirmed for the formulation, especially at the minimum and maximum target batch sizes.

6. Can one FZH blender use 500 L and 2,000 L bins?

That combination requires a frame configured for both sizes. Hywell needs the dimensions, mounting geometry, empty and loaded weights, and operating clearances of both bins to confirm compatibility.

7. Can I use IBC bins I already own?

Send the bin drawings, tare weight, maximum product load, mounting details and valve dimensions. Hywell can review whether the existing bins fit the blender frame and the loading, discharge and washing stations.

8. How do I choose between a single-column and a double-column bin blender?

Compare bin size, gross loaded weight and layout. For a 1,000 L project, evaluate both frame options against the space available for rotation, the bin approach path, and the number of bin sizes the system needs to handle.

Mixing Performance and Controls

1. How long does a blending cycle take?

Blending time depends on the formulation, fill ratio, speed and required uniformity. Determine the operating time with a representative sample trial. When calculating production throughput, also include docking, loading, discharge and any required changeover time.

2. How do I verify blend uniformity?

Agree on the ingredient to assay, the sampling locations, sample size and acceptance criterion. Where appropriate, use relative standard deviation (RSD) from representative samples. If the blend is transferred before use, include a sampling point after discharge.

3. Can the FZH blend a low-dose ingredient into a large batch?

Suitability depends on the inclusion rate and differences in particle size, density and flow. A staged premix can be evaluated in a material trial. Provide the target concentration and uniformity criterion when requesting a trial.

4. Is an IBC bin blender suitable for cohesive powders or fragile granules?

The FZH uses gravity tumbling without an internal agitator. Evaluate cohesive powders for lumping and fragile granules for particle damage in a trial at representative loading and speed.

5. Can the bin stop automatically in the correct unloading position?

Yes. On configurations with automatic positioning, the PLC stops the bin in its preset unloading orientation after the blending cycle. Confirm the positioning, lowering and release sequence in the equipment specification.

6. Can the PLC store recipes and record batch data?

Recipe storage and batch reporting can be specified. Identify the parameters to record, user access levels, report format and any audit-trail requirements so the control scope can be reviewed before quotation.

7. What safety features can be specified?

Discuss the required guarding, access interlocks, emergency stops and clamp confirmation with Hywell. Light-curtain protection can be reviewed as part of the equipment layout and project safety design.

Installation, Cleaning and Integration

1. What information is needed to check room height?

Provide the available ceiling height, door dimensions and any overhead services. Ask Hywell for the minimum machine height, maximum rotating envelope, bin travel path and required operating and service clearances on the general arrangement drawing.

2. Can the blender be integrated with an enclosed loading station?

Yes. A loading system can combine a bag dump station, a vacuum feeder and an IBC filling interface. Confirm powder characteristics, the loading height and the containment level needed at each connection.

3. Can the IBC discharge directly into a tablet press or packaging line?

Yes, where the valve, docking interface and available height match the receiving equipment. Provide the receiving inlet size, elevation and expected feed rate so the transfer layout can be reviewed.

4. How is the IBC cleaned between batches?

Remove the bin for cleaning and inspection. A dedicated washer and hot-air dryer can be specified for compatible bin sizes. Confirm the cleaning method, whether the valve must be disassembled, and the site's acceptance criteria for residues.

5. What material and finish options are available for product contact parts?

Discuss 304 or 316L stainless steel, internal surface finish and seal materials with Hywell. For pharmaceutical projects, specify the required drawings, material certificates, surface finish reports and qualification documentation in the inquiry.

6. Can the FZH be configured for combustible powders?

Hywell can review the project requirements. Provide the installation location, hazardous-area classification and available dust test data. Confirm the applicable equipment scope, protection measures and certification before ordering.

7. What information does Hywell need to quote an FZH blender?

Send your material name, loose bulk density, target and minimum batch weights, number of bins, desired bin sizes, room layout, and loading and discharge interfaces. Include the required controls, cleaning method and site utilities where known.


Previous:
Next:

Product Category

Consult Your Hywell Machinery Expert

We help you avoid the pitfalls to deliver the quality and value your for need, on-time and on-budget.

Products

Why Us

Case Show

Contact Us
   +86-13382828213
   0519-85786231
  No.506.Houdongzhou, Hengshanqiao Town, Changzhou, China
facebook  twitter   youtube rutube-(1)
© COPYRIGHT 2023 HYWELL MACHINERY ALL RIGHTS RESERVED.
