How to Choose the Right IBC Bin Mixer Model

Selecting the correct IBC bin mixer (also called an IBC bin blender or bin blending system) mainly depends on four key factors: material characteristics, batch capacity, cleaning requirements, and production efficiency.

1. Material Type

First consider what type of material you are mixing.

• Free-flowing powder or granules → Standard IBC bin mixer model

• Fine powder with poor flowability → Stronger drive motor recommended

• High bulk density material → Heavy-duty bin blender design

For pharmaceutical, food, or high-value chemical products, it is recommended to use GMP-compliant stainless steel 316L contact surfaces.

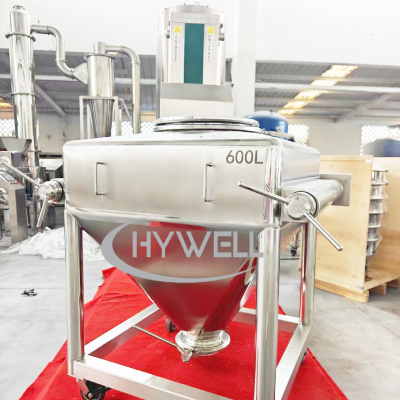

IBC Bin Mixer

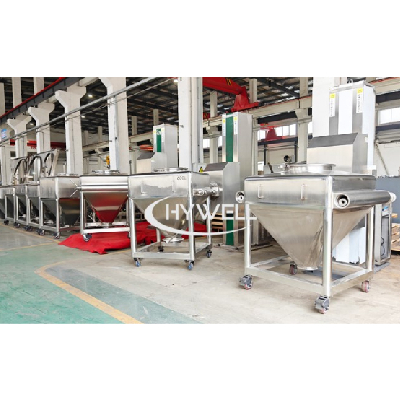

IBC Bin Tank

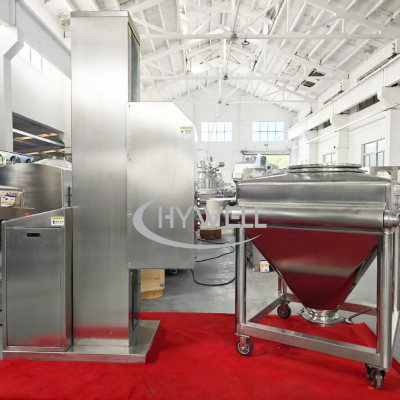

IBC Bin Blender

2. Mixing Capacity per Batch

Determine the batch weight (kg per batch) required for your production.

Typical reference:

• 200kg per batch → 500L IBC bin

• 400kg per batch → 1000L IBC bin

• 800kg per batch → 2000L IBC bin

Always keep 20–30% free space inside the bin to ensure proper mixing performance.

Hywell Machinery IBC bin mixer capacity range:

100 L • 200 L • 500 L • 1000 L • 1500 L • 2000 L • 3000 L

The correct IBC bin blender model should match both material density and batch weight.

3. Production Efficiency (Important for IBC Bin Blending)

One major advantage of an IBC bin blending system is high turnover efficiency.

While the IBC bin mixer is blending one batch:

• Another bin can be loaded with raw materials

• A finished bin can be discharged or transferred to the next process

This means the main mixer never stops.

If the operation is well organized, 2–3 batches per hour can be completed.

Therefore, when selecting an IBC bin mixer model, it is important to consider:

• Worker operation efficiency

• Material loading speed

• Discharge process

In many cases, a slightly smaller bin blender can still achieve the required hourly capacity, which helps reduce equipment investment and floor space.

4. Cleaning & Compliance Requirements

Choose the design based on your industry requirements.

4.1 Food & Pharmaceutical Industry

• Smooth internal surfaces

• GMP design

• Optional CIP cleaning system

4.2 Chemical Industry

• Explosion-proof motor

• ATEX-compliant IBC bin mixer (optional)

4.3 Frequent product changeover

• Quick-release bin structure

• Easy cleaning design

5. Quick IBC Bin Mixer Selection Table

6. Still Not Sure Which IBC Bin Mixer to Choose?

If you provide the following information, Hywell Machinery can recommend the most suitable IBC bin mixer model quickly.

Please send us:

• Material type

• Bulk density (kg/m³)

• Batch  weight (kg)

• Industry (Food / Pharma / Chemical / Other)

With these details, selecting the correct IBC bin blender becomes fast and accurate.
